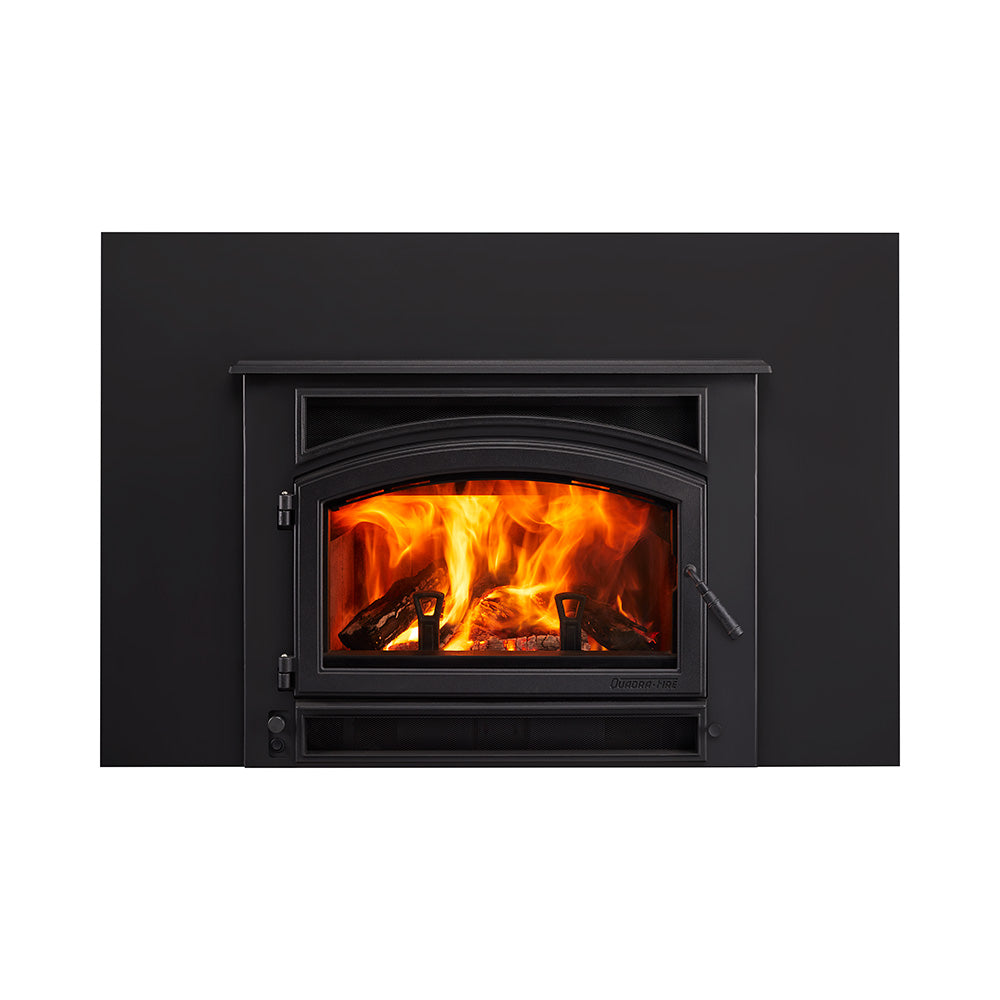

Quadra-Fire Expedition II Wood Insert

Quadra-Fire Expedition II Wood Insert

The Expedition II steel wood insert provides a great value for those looking for the easiest wood insert to operate. Powered by the Quadra-Fire four-point burn system providing an impressive fire that can be easily seen through the large 275 sq.in. cast iron glass door. Along with the Automatic Combustion Control (ACC), which gives you more air when you want it for easier start up or that extra boost of heat when needed. This is done automatically once you set the ACC so no need to stick around and tend the fire, just enjoy the heat.

Starting at $3,458 USD*

Request A Quote View full details
*Price is for product only. Delivery, installation, venting, finishing, accessories, and taxes are not included in the price listed. These and other additional charges may apply. Pricing is subject to change. The "Starting at Price" is for estimation purposes only. See an authorized retailer for product availability and total project estimate.
Quadra-Fire Expedition II Wood Insert product video
KEY TECHNOLOGIES
Automatic Combustion Control (ACC)
Quadra-Fire® Four-Point Burn System
OWN WITH CONFIDENCE
Environmental Protection Agency Approval
This appliance meets the U.S. Environmental Protection Agency’s emissions standards.
Quadra-Fire Expedition II Wood Insert
Dimensions in inches. Refer to installation/owner's manual for detailed specifications on installing this product. Hearth & Home Technologies reserves the right to update units periodically. Product installation must adhere strictly to instructions shipped with product.
Model Specifications
Quadra-Fire Expedition II Wood Insert
Fuel TypeWood
Heating Capacity3Up to 2,400 sq ft
Viewing Area275 sq. in.
Efficiency5LHV 77%, HHV 71%
Emissions1.9 grams/hour

3 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.

5 Weighted average LHV (Low Heating Value) & HHV (High Heating Value) efficiencies using data collected during EPA emissions test. HHV efficiency over 75% qualifies for the Federal Tax Credit.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.

*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.

Specification Images
Expedition II Wood Insert
Insert Finish
Classic Black
Surrounds
Two surround sizes are available - No trim required. Large: 50 ¾” x 34” | Small: 42 ¾” x 31”. Two optional trim pieces available in large and small size: Cast Iron Trim | Nickel Trim

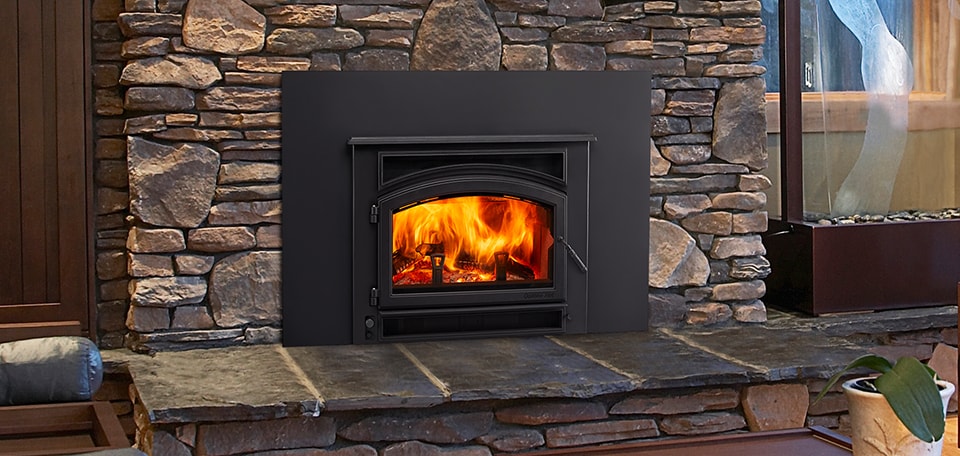

Black Steel Surround

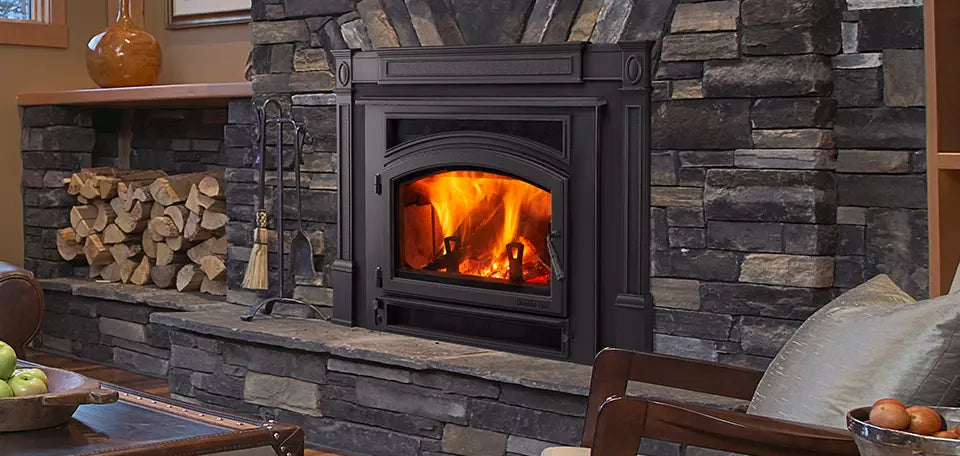

Cast Iron Trim on Black Steel Surround
Nickel Trim on Black Steel Surround
Shelves
The wood shelf mantel is available in 48”, 59” or 72” lengths and with designs that accent any room. Supercast™ concrete is the perfect non-combustible material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.
Baxter Mantel Shelf
Crosby Mantel Shelf
Fillmore Mantel Shelf
Ozark Mantel Shelf
Cove Gray Mantel Shelf - Non-Combustible
Midnight Mist Mantel Shelf - Non-Combustible
White Mantel Shelf - Non-Combustible
Tavern Brown Mantel Shelf - Non-Combustible
Washed Cedar Mantel Shelf - Non-Combustible
Weathered Barnwood Mantel Shelf - Non-Combustible
