PS Series

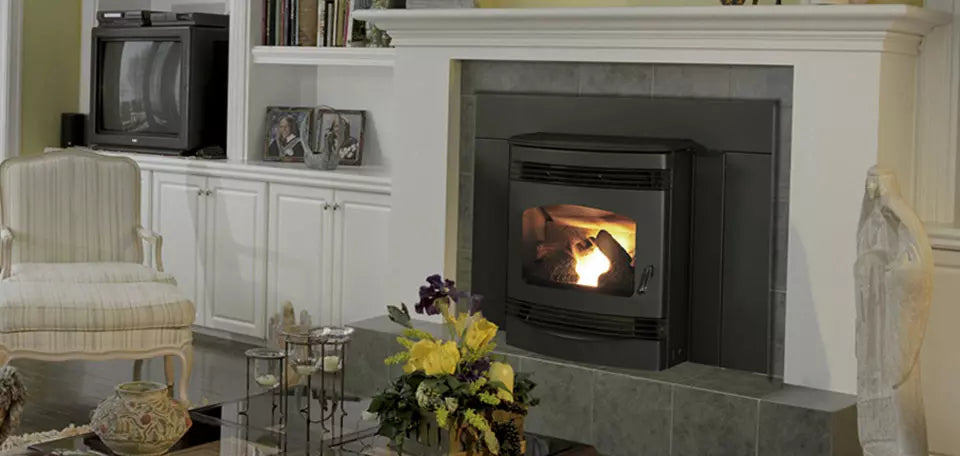

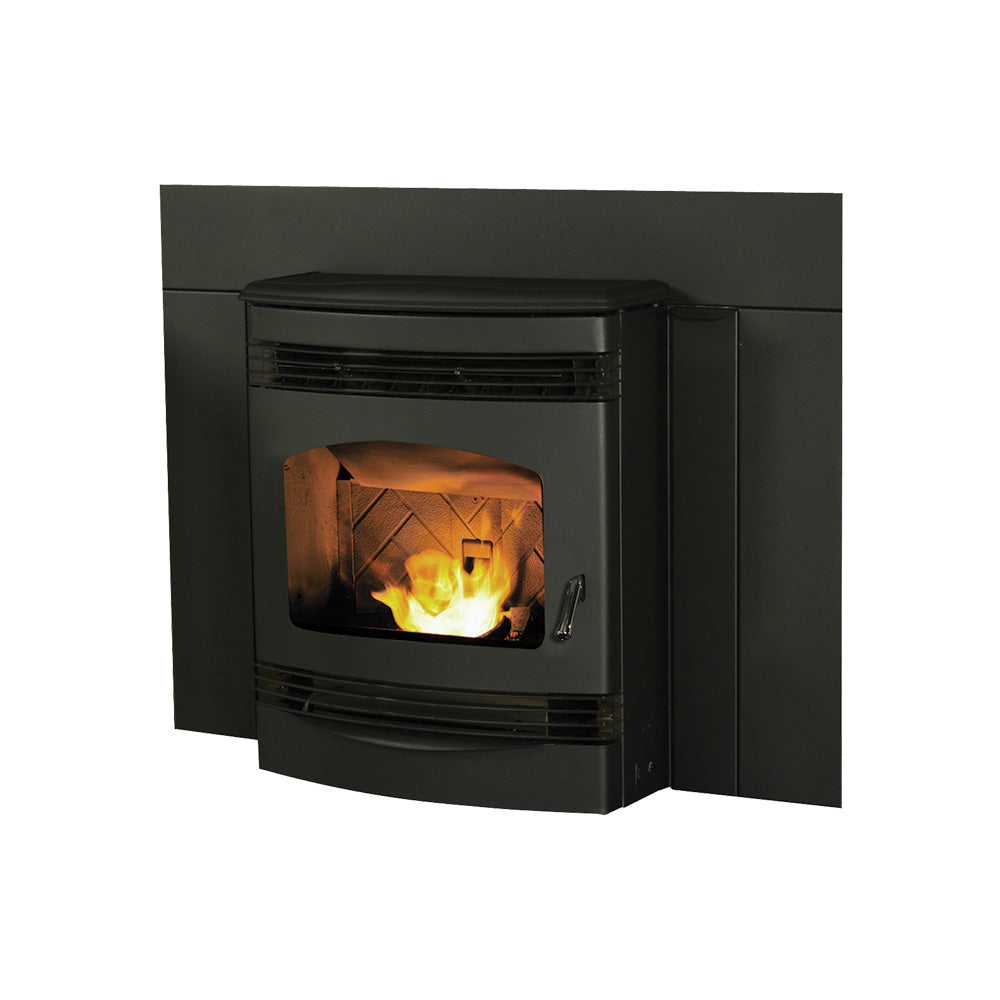

Santa Fe Pellet Insert

The Santa Fe insert turns an existing fireplace into a compact, efficient source of pellet heat.

Heat output
30,600 BTU/hr
Heats up to
1,900 sq ft
Hopper
45 lbs
Fuel
Pellet

The Santa Fe is a sleek, contemporary and eco-friendly heating option. But don’t let its size fool you—this compact unit packs some heating punch. Expect clean, durable and long-lasting performance from this advanced insert.

Features
  • 30,600 BTUs — heats 700 to 1,900 square feet, based on climate and home efficiency
  • EPA certified, with low emission levels of 1.1 grams per hour
  • 45lb hopper capacity
  • Patented feed system for jam-free operation
  • Easy-clean firepot

Starting at $4,068*

*“Starting at” prices are estimates only and do not include delivery, installation, venting, finishing materials, accessories, or any applicable taxes. Product availability and display inventory vary by retailer. Contact your authorized retailer for availability and a full project quote.

Features & Options

Controls

The Santa Fe Pellet Insert comes standard with a wired programmable thermostat. The optional remote gives control flexibility.

  • Standard Programmable Wall Thermostat

    This 7-day programmable wall thermostat offers full control at your fingertips.

  • Smart Stat Remote

    Remote control (on/off, temperature readout, thermostat mode, timer mode)

Front Doors

Santa Fe Insert front and grille set available in standard black and optional black nickel (shown at right) and satin nickel (not shown)

  • Santa Fe Insert door

Shelves

The wood shelf mantel is available in 48”, 59” or 72” lengths and with designs that accent any room. Supercast™ concrete is the perfect non-combustible material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.

  • Baxter Mantel Shelf

    The shelf mantel is the perfect accent to a brick fireplace and a place to showcase some of your most cherished mementos. Available either in 48, 59 or 72-inch lengths, and and Primed MDF or Unfinished Maple finishes.

  • Crosby Mantel Shelf

    The shelf mantel is the perfect accent to a brick fireplace and a place to showcase some of your most cherished mementos. Available either in 48, 59 or 72-inch lengths, and Primed MDF or Unfinished Maple finishes.

  • Fillmore Mantel Shelf

    The shelf mantel is the perfect accent to a brick fireplace and a place to showcase some of your most cherished mementos. Available either in 48, 59 or 72-inch lengths, and Primed MDF or Unfinished Maple finishes.

  • Ozark Mantel Shelf

    The shelf mantel is the perfect accent to a brick fireplace and a place to showcase some of your most cherished mementos. Available either in 48, 59 or 72-inch lengths and Primed MDF, Unfinished Distressed Knotty Alder, or Unfinished Maple Finishes.

  • Cove Gray Mantel Shelf - Non-Combustible

    Complement your gas, wood or electric fireplace with a non-combustible Supercast™ concrete shelf mantel. Supercast concrete is the perfect material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.

  • Midnight Mist Mantel Shelf - Non-Combustible

    Complement your gas, wood or electric fireplace with a non-combustible Supercast™ concrete shelf mantel. Supercast concrete is the perfect material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.

  • White Mantel Shelf - Non-Combustible

    Complement your gas, wood or electric fireplace with a non-combustible Supercast™ concrete shelf mantel. Supercast concrete is the perfect material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.

  • Tavern Brown Mantel Shelf - Non-Combustible

    Complement your gas, wood or electric fireplace with a non-combustible Supercast™ concrete shelf mantel. Supercast concrete is the perfect material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.

  • Washed Cedar Mantel Shelf - Non-Combustible

    Complement your gas, wood or electric fireplace with a non-combustible Supercast™ concrete shelf mantel. Supercast concrete is the perfect material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.

  • Weathered Barnwood Mantel Shelf - Non-Combustible

    Complement your gas, wood or electric fireplace with a non-combustible Supercast™ concrete shelf mantel. Supercast concrete is the perfect material for a sturdy shelf mantel for indoors or outdoors, and adds a personal touch to your fireplace. Available either in 60 or 72-inch lengths.

Full Specifications

Appliance Width
21-1/2"
Appliance Height
25-3/8"
Depth Minimum Firebox Opening
13"
Extension Onto Hearth
8-5/8"
Fuel Type
Pellet
Heat Output
30,600 BTU/hr
BTU/hr Input1
9,400 - 30,600
Heating Capacity2
1,900 sq ft
Hopper Capacity3
45 lbs
Viewing Area
201 sq in
Efficiency4
LHV 70%, HHV 66%
Emissions
1.1 grams/hour
  1. 1 BTU/hr Input based on maximum feed rate per hour multiplied by approximately 8600 BTU, which is average BTU from a pound of pellets.
  2. 2 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.
  3. 3 Fuel density and pellet shape will affect hopper capacity.
  4. 4 Weighted average LHV (Low Heating Value) & HHV (High Heating Value) efficiencies using data collected during EPA emissions test.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
